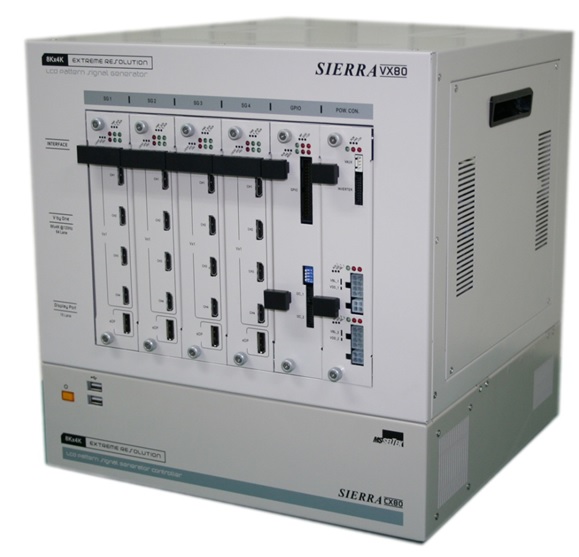

UHD Pattern Generator SIERRA

      SIERRA-X8 was newly developed  with various features and convenient to inspect LCD panels and modules that is suitable
      for the highest productivity of the mass production of ultra-high resolutions.

      Innovative Sierra-X8 corresponds with high-speed signal interface and UHD(3840x2160) for the ultra-high resolution LCD panels.

      This equipment can support a maximum resolution of 8200x4200, 240Hz and output port is VbyOne type that support 64 lanes
      and also equipped with 16 lane display port.

      Sierra-X8 is made up of Pattern generator, power supply, and control PC that can also add LCD module JIG or testing table.

      Button Mouse or Key PAD is operated to control the cursor displayed on the LCD, lighting defects, line defects, such as data
      collection and statistical data is created and, if necessary, the Host and HSMS or TCP / IP can be transferred across.

      Operating GUI program enables to add LCD modules infinitely and using Editor can modify or make patterns easily and also can
      edit bmp files

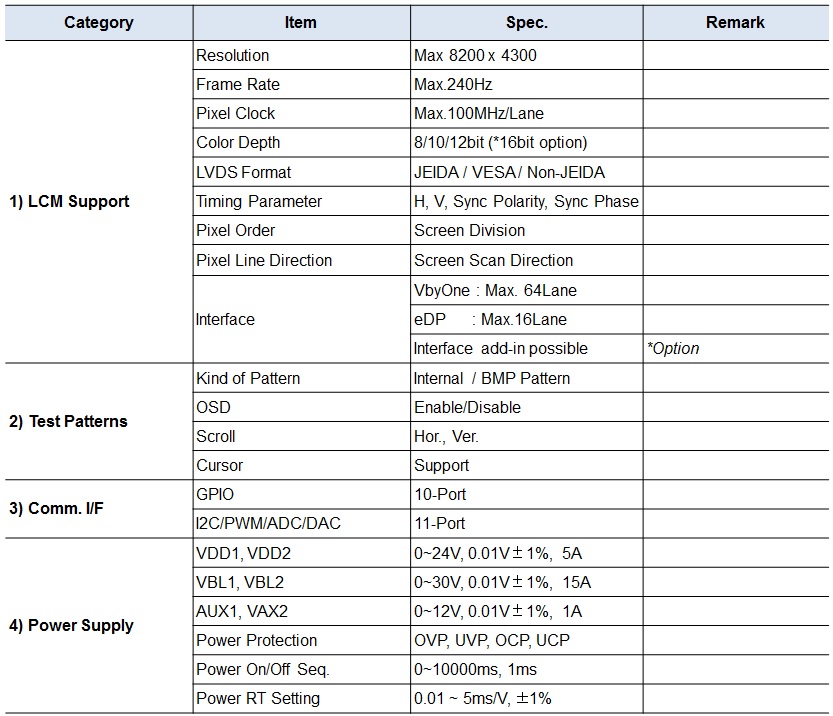

   - LVDS, TMDS(OPT), TTL(OPT), DPTU(OPT) interface
   - Ultra HD resolution, support 8Kx4K (Extreme Resolution)
   - High-speed interfaces VbyOne (standard display port is mounted)
   - Uses Interface conversion board to support variety of modules
   - Support color depth 10, 12, 16bit
   - Maximum frame frequency up to 240Hz
   - 12Bit BMP response
   - Support Multi-screen division
   - Support OSD functions
   - Window 8.1
   - Drive LCM Power Supply – 2 EA
   - Easy to edit LCD Module data
   - Easy to edit patterns
